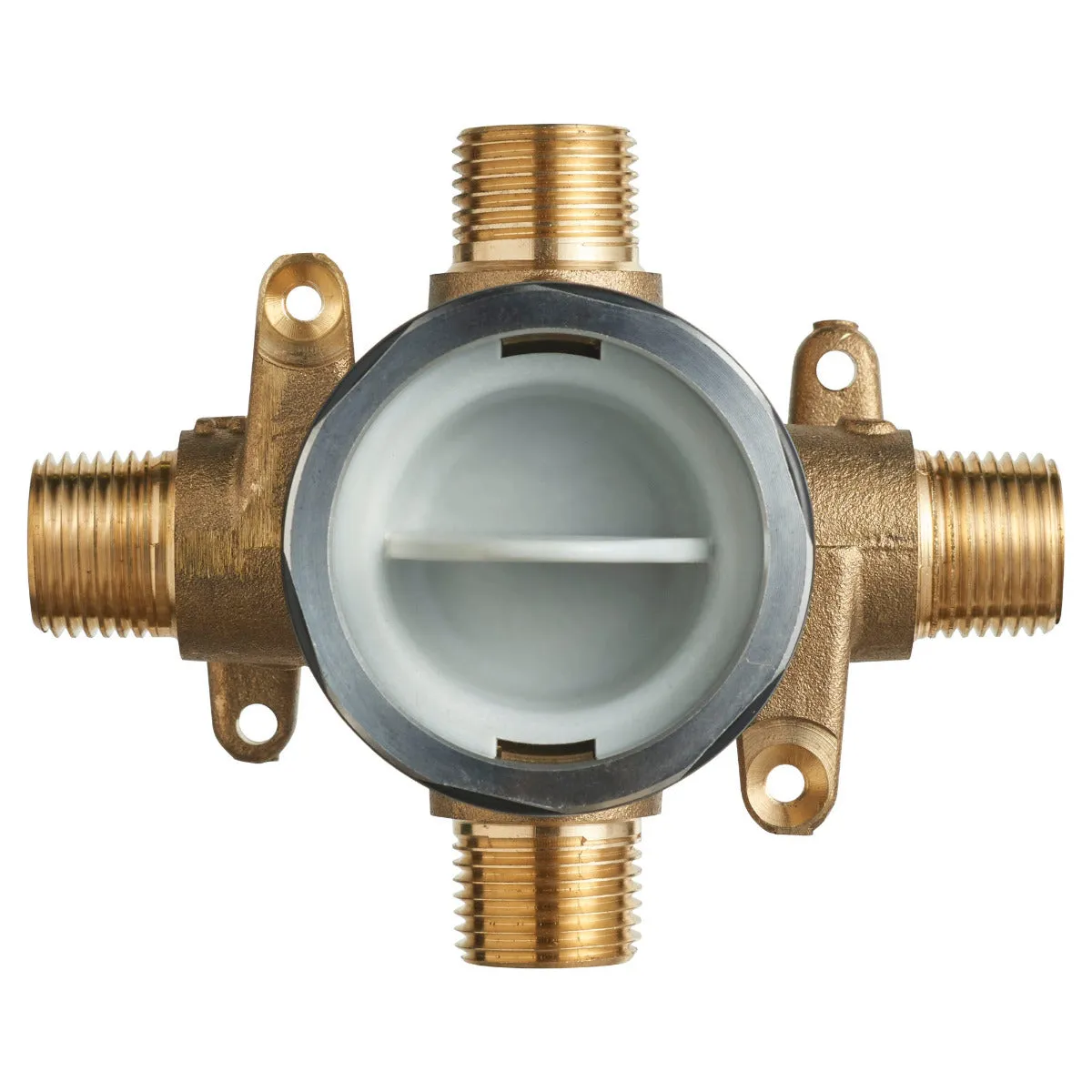

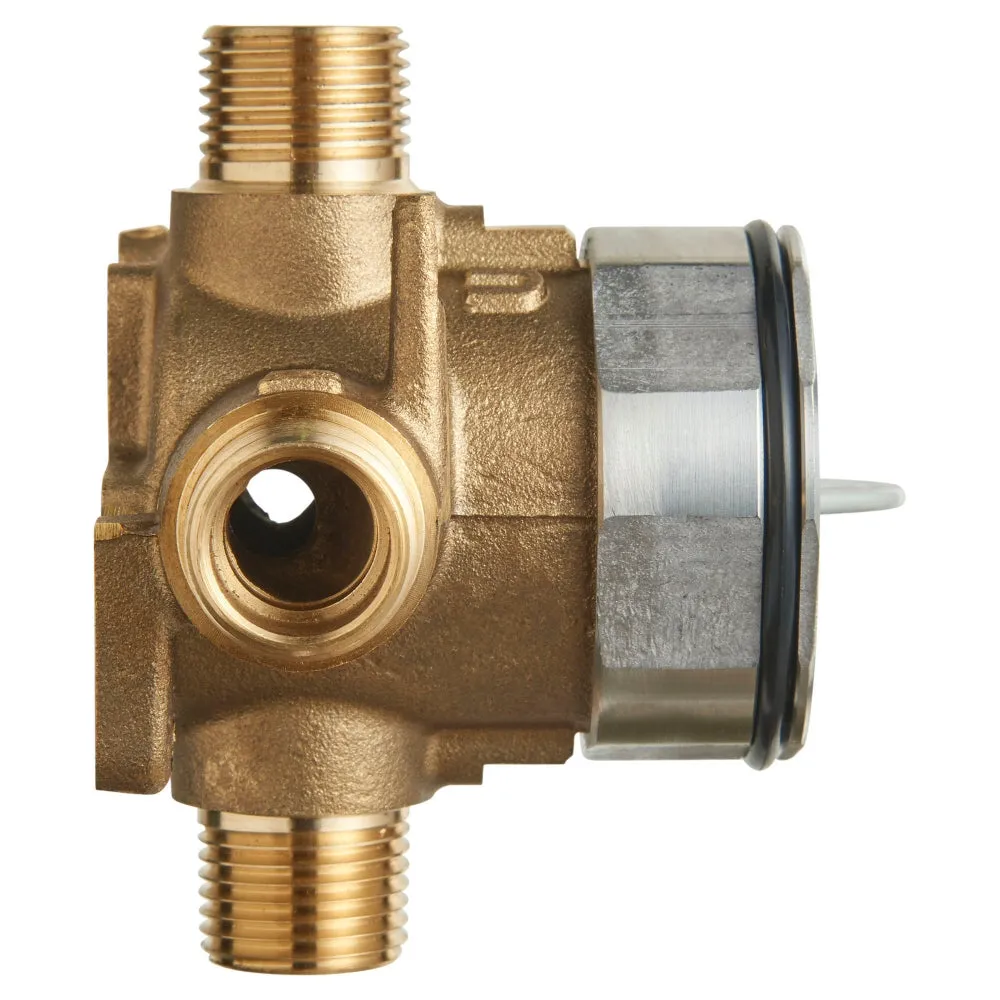

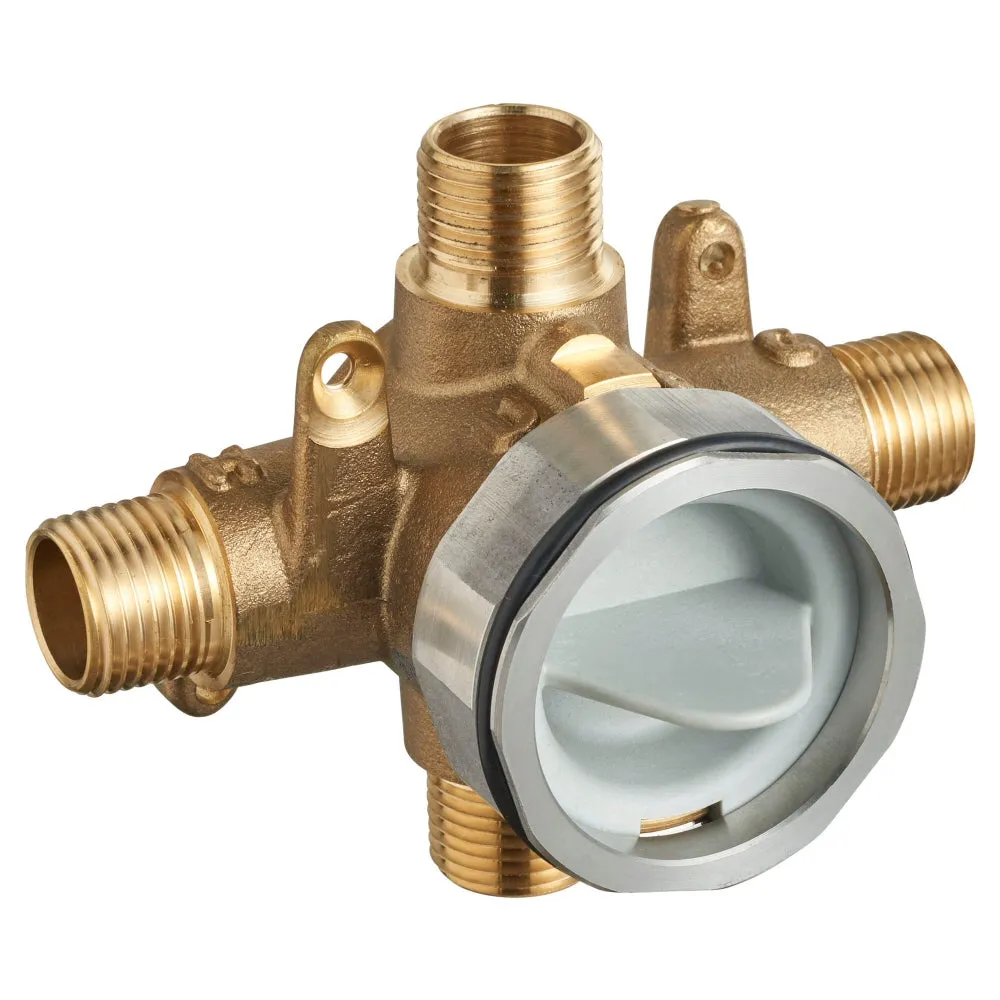

Flash Shower Rough-In Valve with Universal Inlets/Outlets

RU101

Designed for fast and efficient installation, the Flash Shower Rough-in Valve provides flexibility for every situation. The Rough-in Valve features a flat back and compact body to ensure a secure and simplified install process that can accommodate smaller spaces. Equipped with a test cap, it allows you to install, test, and flush lines with ease. Stainless steel fixation ring, with sure-grip flats, keeps test cap and cartridge in place without screws. Cartridge sold separately.

• 1/2" Male NPT/Sweat inlets/outlets accept 1/2" copper, 1/2" iron pipe, PEX or CPVC adapters
• Brass valve body
• Flow rate: 5.1 gpm @ 45 psi*
• Back-to-back capability
• Includes test plug with stainless steel ring
• Cartridge ships with trim
• Test Cap: Allows valve body to be tested and flushed without the presence of the valve cartridge. Can be tested using test cap with air (200 psi) or water (300 psi).
• Stainless Steel Retaining Ring with Flats: Secures test cap/ cartridge in place and eliminates need for screws. Flats make it simple to loosen ring for quick, easy insertion/removal of test cap/cartridge.
• Flat Back: Allows valve to be mounted flush against cross brace for easy and solid installation
• Cast Brass Valve Body: Durable. Ideal material for prolonged contact with water.
• Back-to-Back Capability: Hot and cold can be reversed quickly and easily.

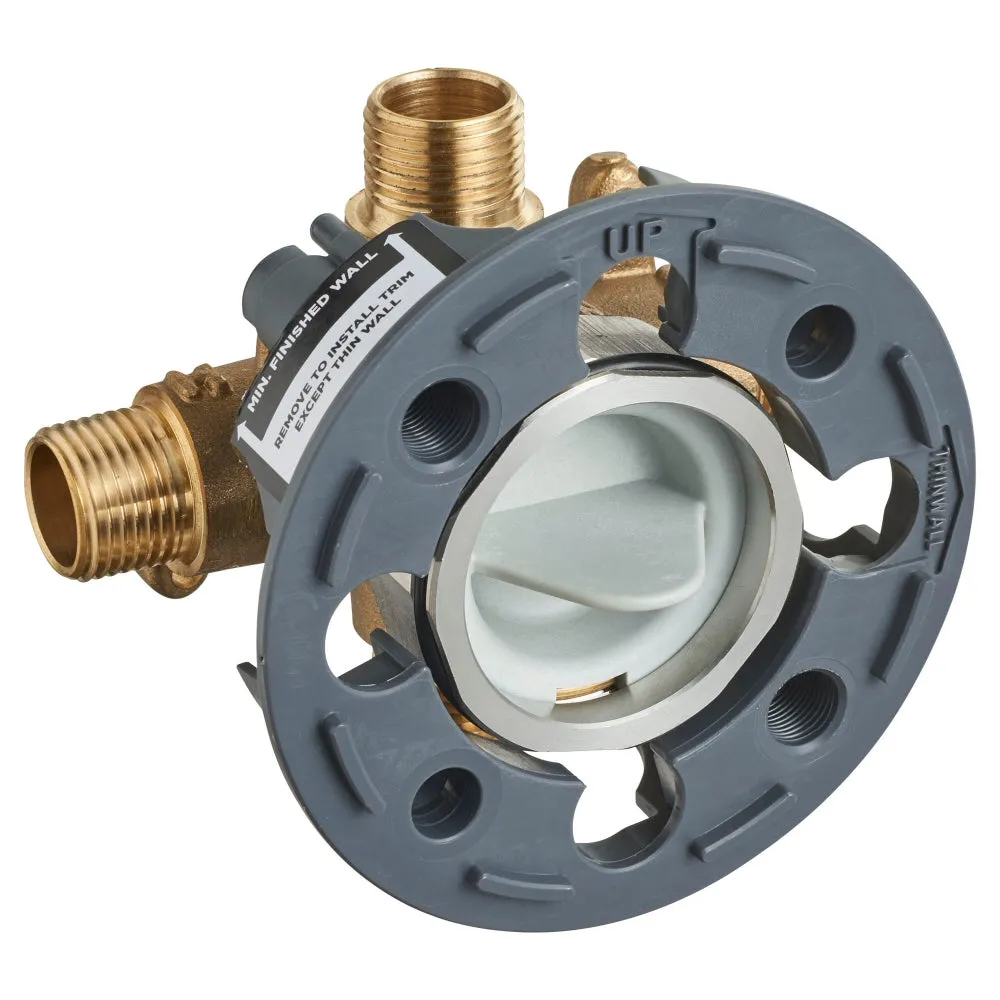

• Exclusive Plaster Guard: Plaster guard is designed to protect valve and act as a guide during installation. It can serve as mounting support for thin-wall installations.
• Wide Rough-in Range: From 1-3/4" to 2-3/4" from finished wall to the back of the valve.
• Cartridge Ships with Trim
• Height: 6.313, Length: 5.688, Width: 4.25

Shipping Weight: 1.98 lbs

UPC: 012611625299
